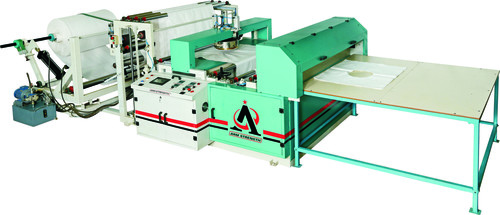

Auto Jumbo Fabric Cutting Machine

Auto Jumbo Fabric Cutting Machine
Auto Jumbo Fabric Cutting Machine
Send Inquiry
Product Code : FCM / J - 1400
Product Description

Auto Jumbo Fabric Cutting Machine

FCM / J - 1400

Technical Specifications

Description

JFCM-1400

JFCM-2200

Maximum width of fabric

1400mm

2200mm

Maximum diameter of fabric roll

1000mm

1000mm

Maximum weight of fabric roll

1000 kg

1000 kg

Cutting length

500-5000mm

500-5000mm

Production speed (1 mtr length)

18 cuts with spout pcs/min

18 cuts with spout pcs/min

24 cuts without spout pcs/min

24 cuts without spout pcs/min

Cutting accuracy

+2mm

+2mm

Cutting unlaminated fabric

80-300 GSM

80-300 GSM

Heating temperature

Up to 400 Degree

Up to 400 Degree

Side Folding Unit

5 CM folding width (adjustable)

5 CM folding width (adjustable)

Spout Cut

O Cut and X Cut (As per required)

O Cut and X Cut (As per required)

Spout cut die

300mm (as per required)

300mm (as per required)

Web guide

Hydraulic and pneumatic system

Hydraulic and pneumatic system

Web guide driven motor

1 HP-3 Phase

1 HP-3 Phase

Control LER

9.7 Nm, servo with digital size setting(Delta make)

9.7 Nm, servo with digital size setting(Delta make)

Main motor

A.C Drive, 3 HP

A.C Drive, 3 HP

Electrical supply

440 VAC, 3-phase with neutral and earth

440 VAC, 3-phase with neutral and earth

Actual and rated power consumption

10 HP/15 HP/3-Phase

10 HP/15 HP/3-Phase

Pneumatic consumption

8 kg/7-8 bar/10 CFM

8 kg/7-8 bar/10 CFM

Dimension

7000 mm x 3700mm x 1700 mm (LxWxH)

7000 mm x 3700mm x 1700 mm (LxWxH)

Net weight

1000 kg.

1200 kg.
